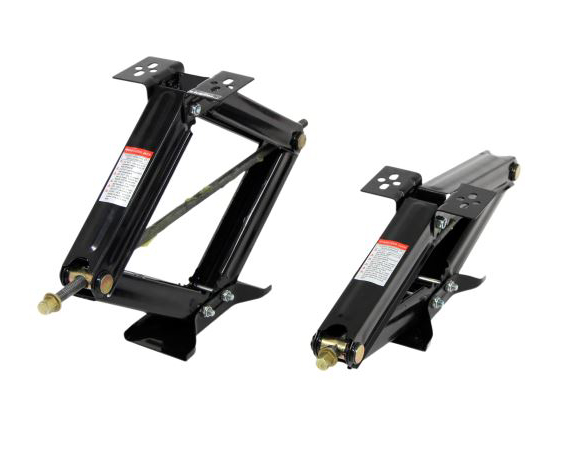

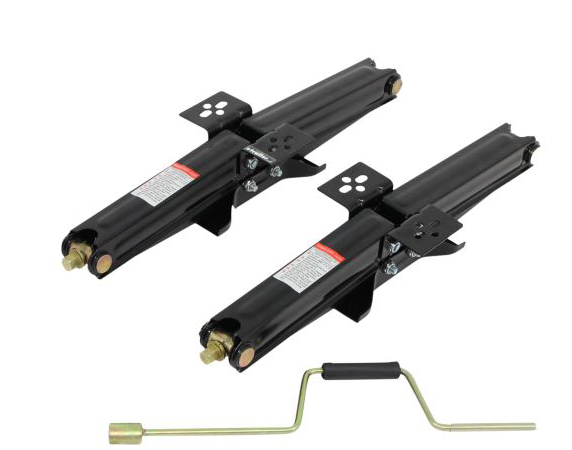

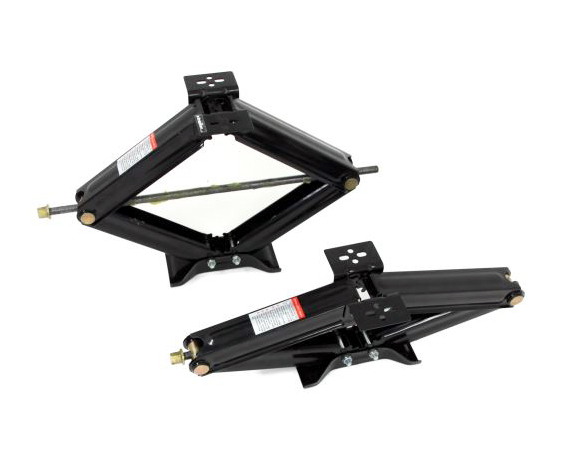

Ultra-Fab Ultra Scissor Jacks – 7500 Lbs,5,000 lbs,2500 lbs – Qty 2

Product Description

Features:

• Scissor jacks level and stabilize 5th-wheel, travel, horse and cargo trailers
• Heavy-duty worm-gear jacking mechanisms prevent slippage
  • Perfect for stabilizing loads
• Large footplates provide excellent stability
• Bolt-on or weld-on installation
  • (2) 3″ Wide x 10″ long mounting plates have multiple holes to fit most applications
  • Mounting hardware not included (3/8″ bolt is recommended)
• E-Z crank handle included
• Sturdy steel construction
• Black powder coat finish resists corrosion

1. 7500LBS Specs:

• Capacity: 15,000 lbs
  • Each jack has a lifiting capacity of 7,500 lbs
• Extended height: 23-3/4″
• Retracted height: 4″
• Lift: 19-3/4″

2. 6500LBS Specs:

• Quantity: 2 jacks
• Lift: 30″
• Collapsed height: 4-3/4″
• Collapsed length: 33-1/2″
• Support capacity per jack: 6,500 lbs
• Footplate dimensions: 5″ wide x 9″ long
• Lifetime warranty

3. 5000LBS Specs:

• Capacity: 5,000 lbs per jack
• Extended height: 24″
• Retracted (collapsed) height: 4″
• 1-Year limited warranty
• These 2 leveling scissor jacks with 5,000-lb capacity each will keep your RV level and stable. Each adjusts from 4″ to 24″ inches as your situation requires, and the bow-tie base steadies the jack on soft surfaces.

4. 2500 lbs Specs:

• Height:
  • Collapsed: 5″
  • Extended: 23-3/4″
• Lift: 18-3/4″
• Length: 24-7/8″ when fully collapsed
  • 26″ Long including nut
• Mounting base: 10″ long x 3-1/4″ wide
  • Mounting holes: 5/8″ long x 3/8″ wide
  • Round holes: 5/16″
• Lift capacity: 2,500 lbs
• Quantity: 1 jack
