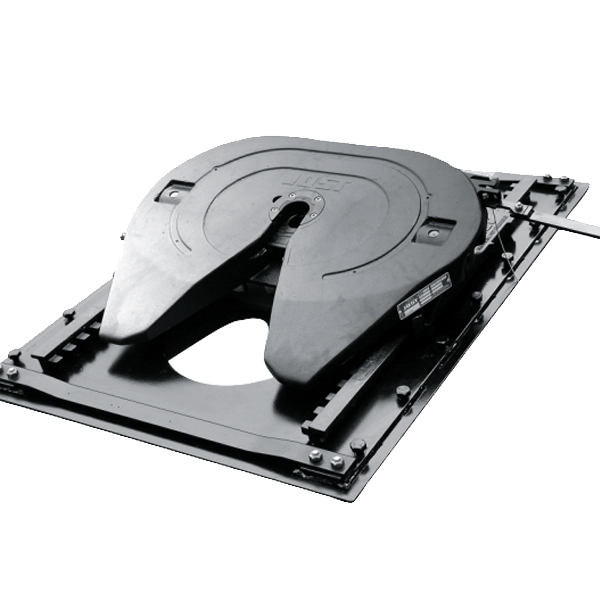

Product Description

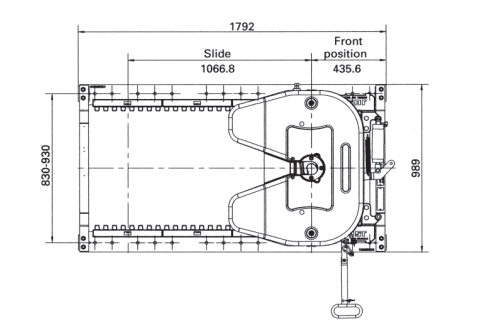

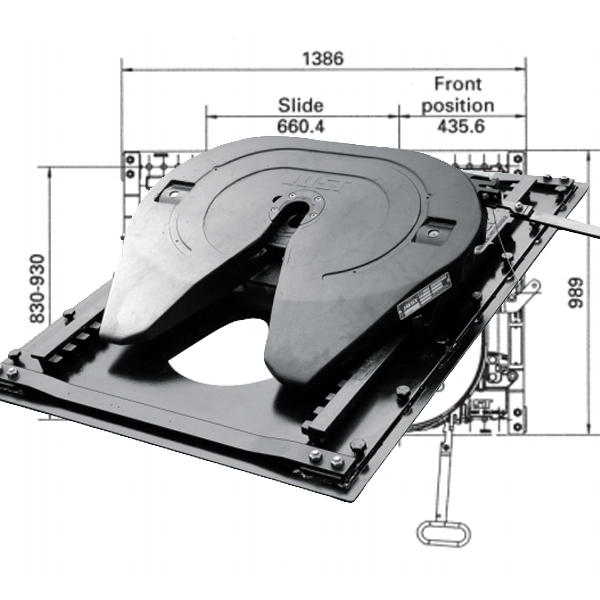

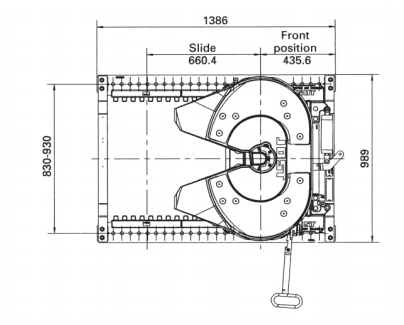

- Standard and XXL.
- .20 tons imposed load (permitted)
- Standard Weight: 118 kg (without fifth wheel coupling)
- XXL Weight: 139 kg (without fifth wheel coupling)
- Mounting height(mm): 173/203/220/263
CRN/ Rating:
- 36820 D-Value 190 kN
Features:
- Fifth wheel coupling position freely adjustable in 50mm steps
– optimum shaft load and load distribution
– total traction length setting - 4 construction heights: 173, 203, 220 or 263mm
- Can be attached to all standard vehicle types
- Equipped with the tried and tested fifth wheel couplings JSK 37 E, JSK 37 EW or JSK 36 D
- All standard customer hole patterns available ex works
- Easy to mount with a hexagonal bolt
- Base plate to suit narrow or standards spec chassis
- 25% lighter than its predecessors
- Greater degree of travel with smaller external dimensions
- Cathodic electrophoretic painting for optimum anti corrosion
- Self-locking mechanism, protected against accidental opening
- Elbow lever principle for greater locking force
- Fourfold, interlocking lock between the carriage and slider frame
- Forged gear tooth rows
- jsks.pdf
- Cast pedestals
Note: We could design and produce any type of fifth wheels as per customers’ drawings and samples
