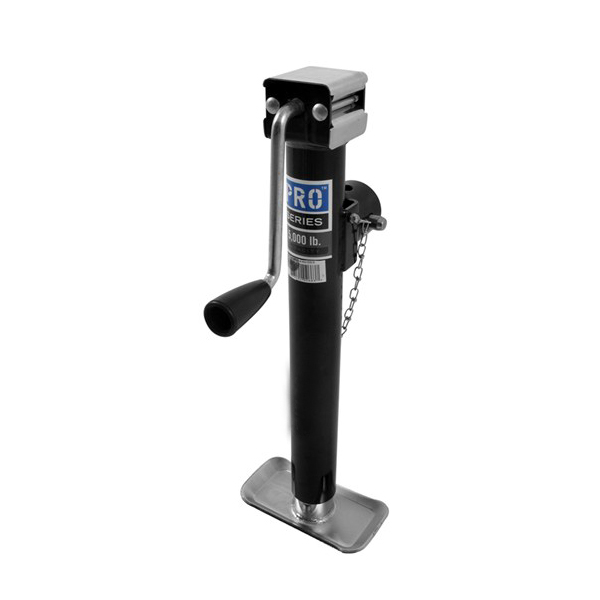

Product Description
Note: We could design and produce any Special type landing gears as per customers’ requirements.
Features:
- Utility jack is perfect for agricultural and commercial applications
- Tubular swivel design lets you swing jack up for travel, down for use
- Included pull pin holds jack in place
- Sidewind handle has smooth, ergonomic design for easy cranking
- Outer tube has black paint finish
- Inner tube is zinc plated

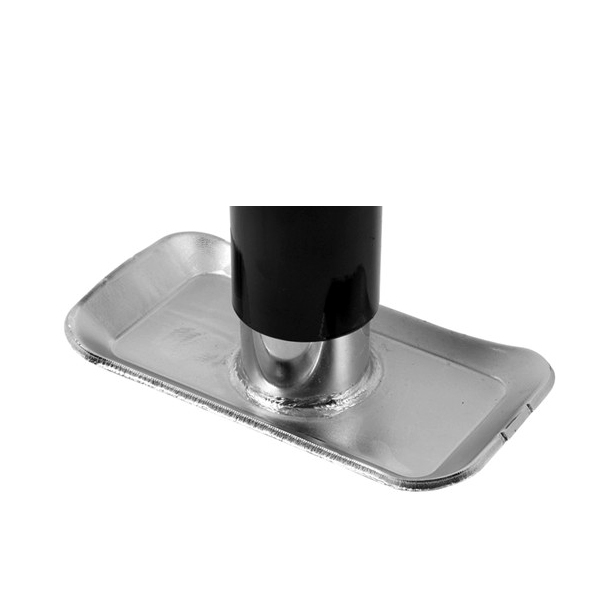

- Weld-on pipe mount and standard footplate included
Specs:
- Bracket height:
- 15-1/2″ Retracted
- 30-1/2″ Extended
- Lift: 15″
- Clearance: 6-1/4″ from mounting bracket to top of jack
- Inner tube diameter: 2″
- Outer tube diameter: 2-1/4″
- Lift capacity: 5,000 lbs
- Pipe mount measures 2″ in diameter
- Limited 1-year warranty
